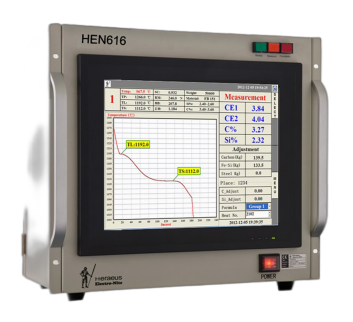

HERAEUS HEN-616

molten iron Carbon Silicon Analyzer

The intelligent thermal analyzer series adopts German industrial design, in addition to accurately measuring various parameters, and can automatically save all data. Can assist customers to achieve quality tracking and data management, improve quality management, is a good helper for production management

Instrument Specifications

1. Host: industrial tablet computer;

2. Display: 15-inch TFT LCD;

3. Applicable power supply: AC 176~264V 47~63Hz;

4. Dimensions: 440x420x250 (WxHxD);

5. Working temperature: 0~50℃;

6. Working humidity: <70%;

7. Machine power: 60W;

8. Machine weight: 20kg.

 Measurement

Item name   Measurement range   Measurement accuracy

CE            2.5~5.0%               ±0.047%

C              2.1~4.2%               ±0.039%

Si             0~20%                   ±0.1%

T              0~1370℃

Main functions

1. Measurement function: determine the liquid phase carbon equivalent CEL, carbon equivalent CE, carbon content C, silicon content Si, primary crystal temperature T1, eutectic temperature Ts, subcooling degree △T, △Tm of molten iron;

2. Setting function: 4 detection formulas can be set, all settings can be realized through the touch screen, easy to operate, and all measurement records are automatically saved in chronological order;

3. Management function: All historical measurement records can be read at any time, displaying historical measurement results and measurement curves. All historical data can be exported through U disk and saved to other computers.
